Home Theater Seating
Specifications & Configurations


Standard Sizes

Seat Width: 20”, 22”, 24” & 26”
Seat Height: 18"
Seat Depth: 20"
Back Height: 24” (short), 26” (medium), 28”(tall)
Overall Chair Height: 38”, 40”, 42” *
Arm Width: 5” - 6”
Wedge Arm: 5” front / 10” back
Arm Height: 24”

* Overall height will vary depending on style



Custom sizes are available for all components.

Sofas and sectionals are built to order

Examples are: 2-seat sofa 60”, 3-seat sofa: 85”

Reclining mechanisms can be added to any seat in the sofa.

Unless you tell us dfferently, all chairs come with cup holders.

Add 0.5” per seat for upholstery allowance. Slight variance may occur with model.


Viewing Positions

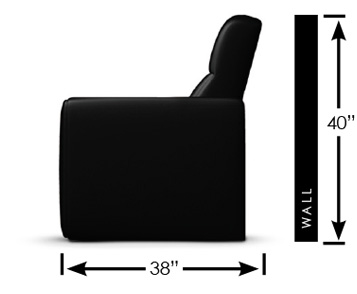

Position 1
Closed

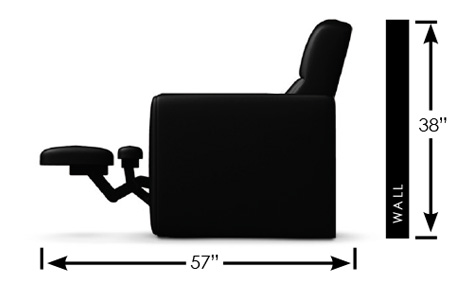

Position 2
Foot Rest Extended

(Recommended viewing position)
Maintains line-of-site viewing because footrest extends before back reclines. Chair may be placed against back wall.

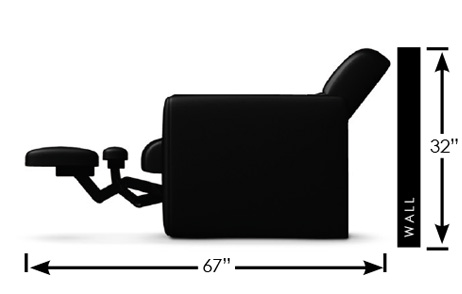

Position 3
Full Recline

When in this position, the chair need be only 5” from wall.


Chair Configurations


Single - Dual - Single





4-Seat Common Arm Unit

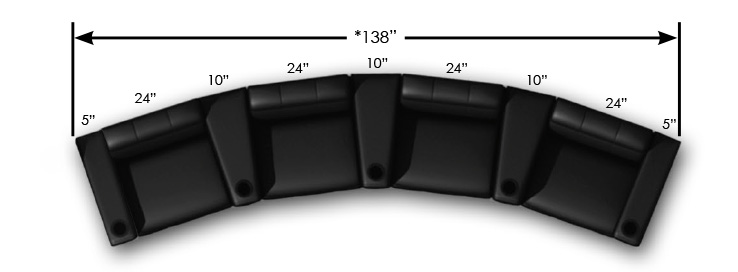

Top View 4-Seat Common Wedge Arm Unit
*Includes .5 inch growth per seat


STandard Back Height and Arm Options

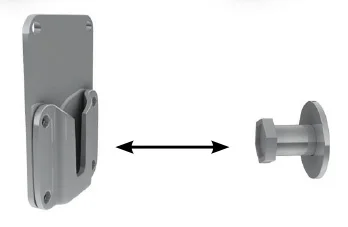

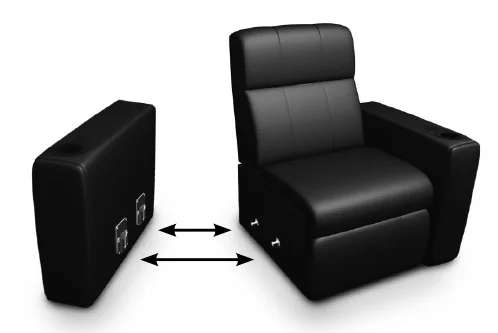

Quick Connect Assembly
